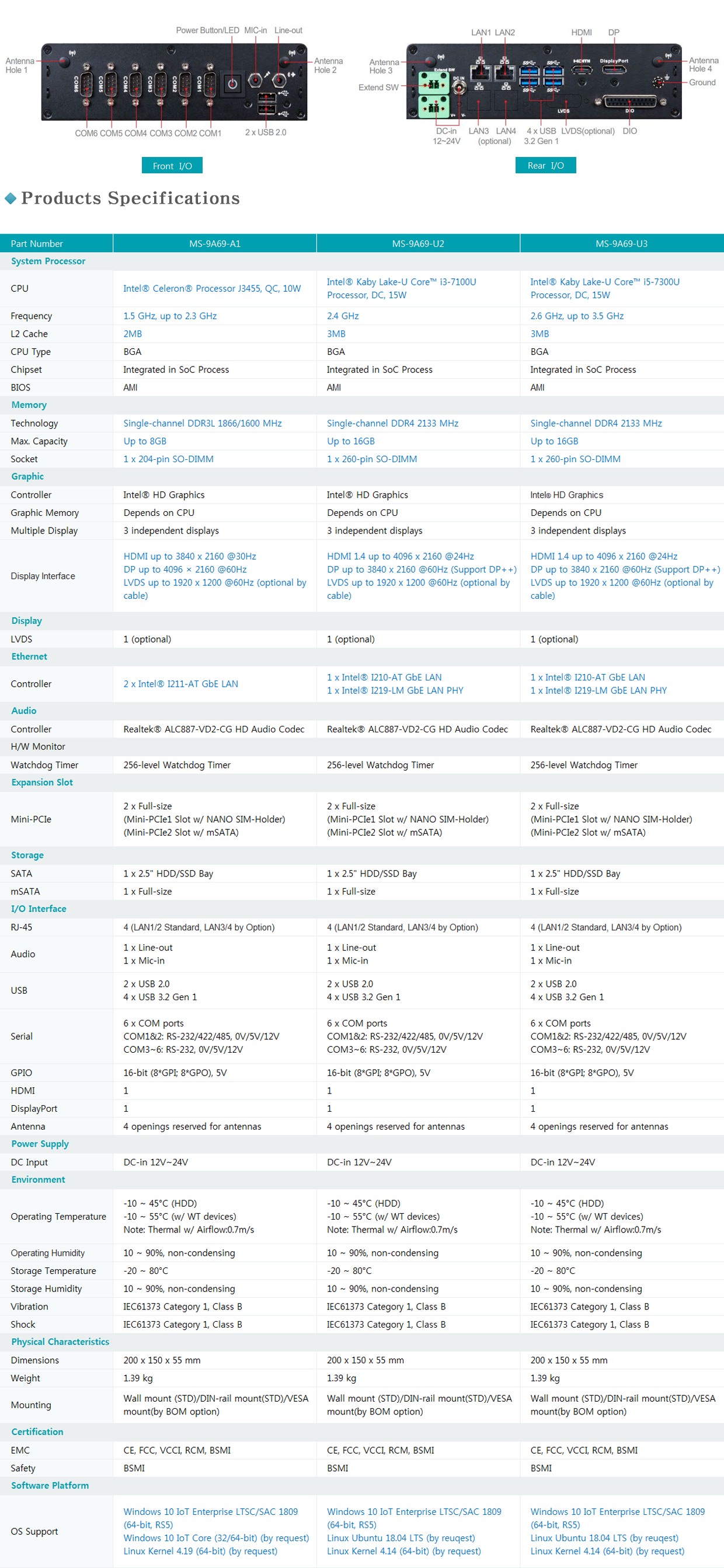

Compact-Size Box PC with Intel® Kaby Lake-U or Apollo Lake Series Processor for Ultra Low-Power Fanless Solution

• Intel® Apollo Lake/Apollo Lake-I Series SoC
• DDR3L 1866/1600 MHz SODIMM Slot up to 8GB
• Triple independent displays: DP++, HDMI, LVDS (by option)
• 2 GbE LAN with RJ-45, 2 GbE LAN by Mini-PCIe expansion card with RJ-45 (by option)
• Mini-PCIe (Full size, with mSATA), Mini-PCIe (Full size, with Nano SIM Holder) Slots
• SATA 3.0 storage (2.5” SSD/HDD) , micro SD for storage
• 4 USB 3.2 Gen 1, 2 USB 2.0, 6 COM (2 RS-485), GPIO, Audio
• 4 opening resrved for antennas
• Anti-Vibration & Shockproof Design to Compliance IEC 61373
• Wide Voltage DC-IN 12~24V
• Ultra-Compact with fanless design
• Intel® 7th Gen Kaby Lake-U Series
• DDR4 2133 MHz SODIMM Slot up to 16GB
• Triple independent displays: DP++, HDMI, LVDS/DVI-I (by option)
• 2 GbE LAN with RJ-45, 2 GbE LAN by Mini-PCIe expansion card with RJ-45 (by option)
• Mini-PCIe (Full size, with mSATA), Mini-PCIe (Full size, with Nano SIM Holder) Slots
• 2 SATA 3.0 storage (2.5” SSD/HDD) , micro SD for storage
• SATA RAID 0/1
• 4 USB 3.2 Gen 1, 4 USB 2.0, 6 COM (2 RS-485), GPIO, Audio
• 4 opening resrved for antennas
• Anti-Vibration & Shockproof Design to Compliance IEC 61373
• Wide Voltage DC-IN 12~24V
• Ultra-Compact with fanless design
