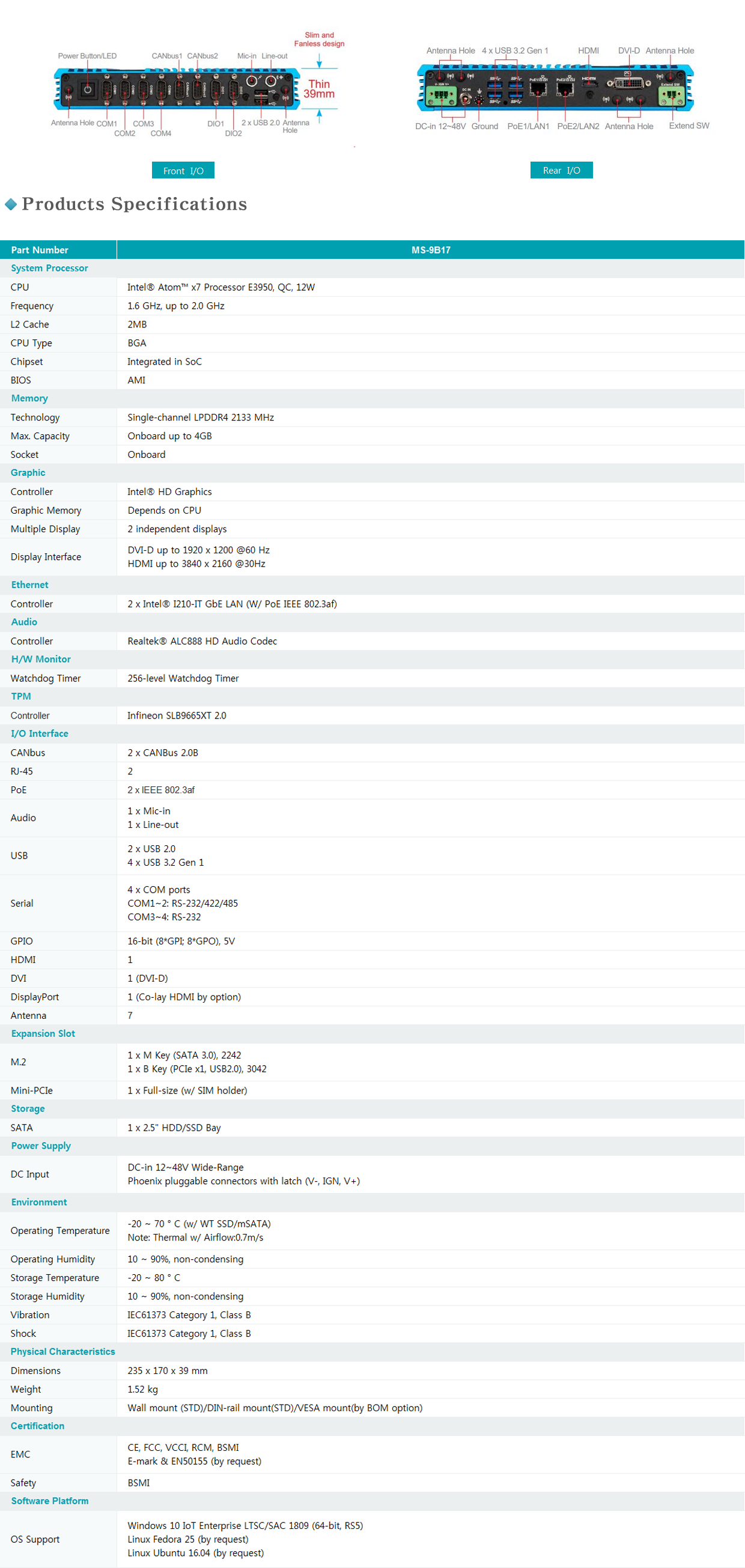

In-Vehicle/Transportation Box PC with Intel® Apollo Lake-I for 2 PoE Ports, 2 CANBus 2.0B & Ultra Slim Fanless Solution

• Intel® Apollo Lake-I SoC
• LPDDR4 2133 MHz onboard memory up to 4GB
• Triple independent displays : DVI-D, HDMI (DP by option)
• 2 PoE/GbE LAN with RJ-45 (IEEE 802.11af compliant)
• 1 Mini-PCIe (Full size, with NANO SIM-Holder), 1 M.2 B Key (with NANO SIM-Holder)
• SATA 3.0 (1 x 2.5" HDD/SSD), M.2 M Key for storage
• 4 USB 3.2 Gen 1, 4 USB 2.0, 6 COM (2 RS-485), GPIO, Audio
• 7 openings reserved for antennas
• Onboard TPM 2.0
• Dual channel CANBus 2.0B
• Wide operating temperature : -20~70°C
• Wide voltage DC-IN 12~48V
• ESD: Contact 6KV/ Air 8KV
• Power on/off delay control for ignition (by option)
• Anti-Vibration & Shockproof Design to Compliance IEC61373
• Railway design to Compliance EN50155 TX Class
• E-Mark certified for in-vehicle applications
